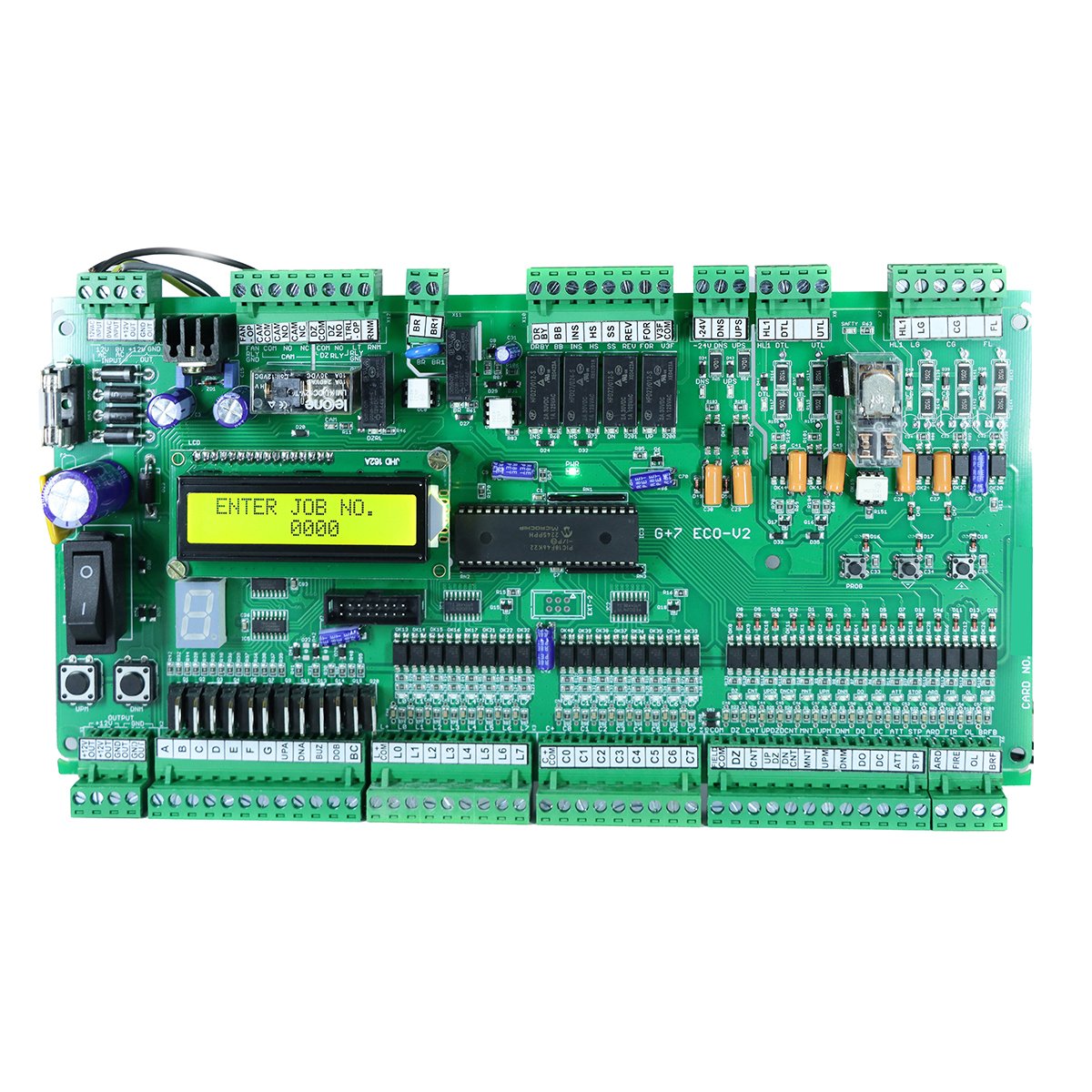

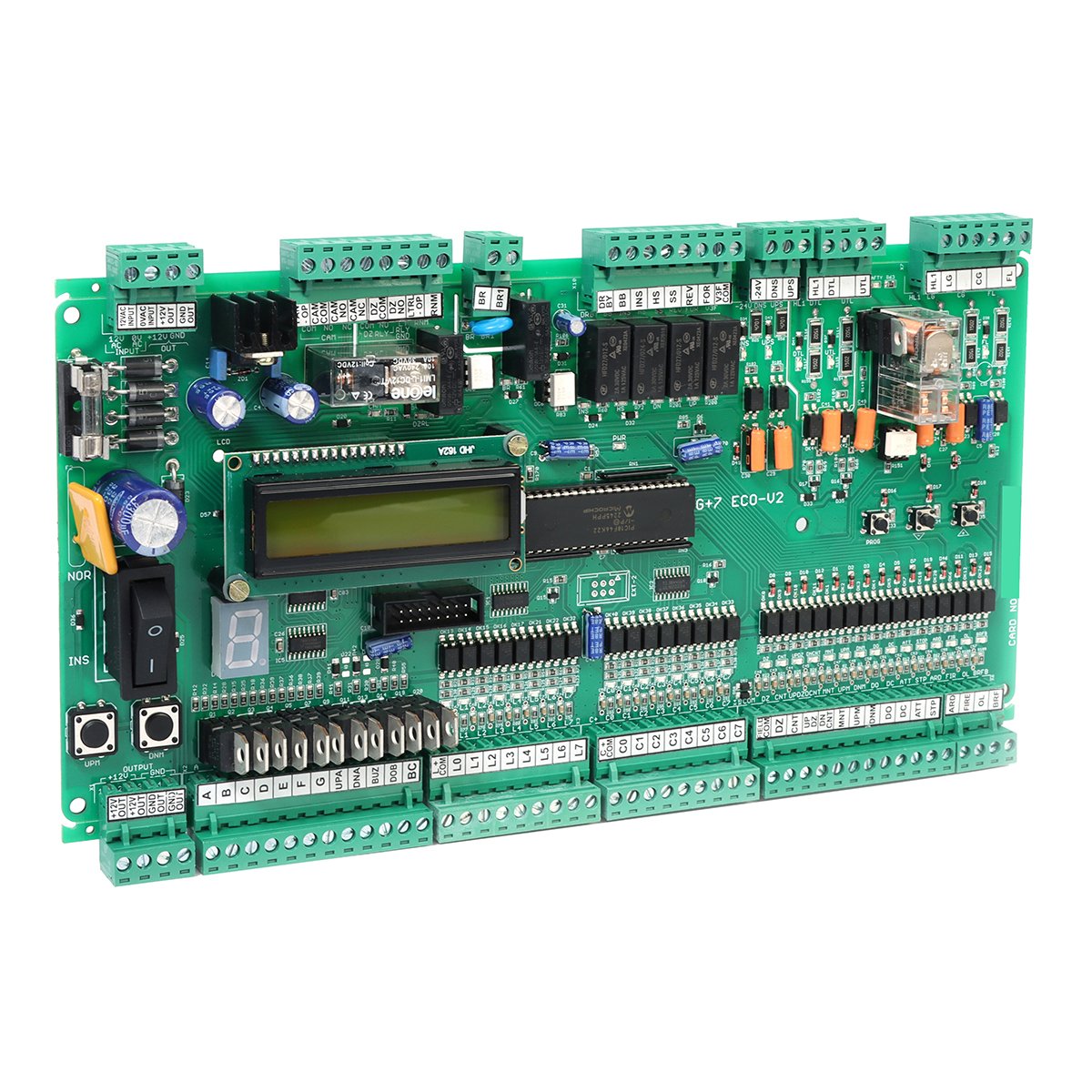

ICON ECO G+7

Description

• Logic board for V3F ELEVATOR.
• Supply voltage requirement 12VAC, 24VDC & 110VAC for safety.
• Maximum on board number of stops 8.
• -(G+7 down collective / G+5 full collective).
• Door operation –
• -Manual Door
• -Auto Door
• Speed support up to 1 m/s.
• User configurable with LCD display & keyboard.
• Input Reed signals CABIN TOP REED.
• LCD display showing status & errors.
• Status of all inputs & outputs though LED indication on board.
• Relay board embedded with logic board so no need for external relay card.
• Safety Door Lock Short Detection Available.
• We can directly connect Floor Announcement ICON VOICE with this logic board using FRC Cable.
• Using the SER-485 card we can directly connect the Serial LOP & COP indicator using 2 Wires only.
• Functions-
• -Auto fan & Light
• -Auto attendant.
• -Fire mode.
• -Call Cancel.
• -ARD mode.
